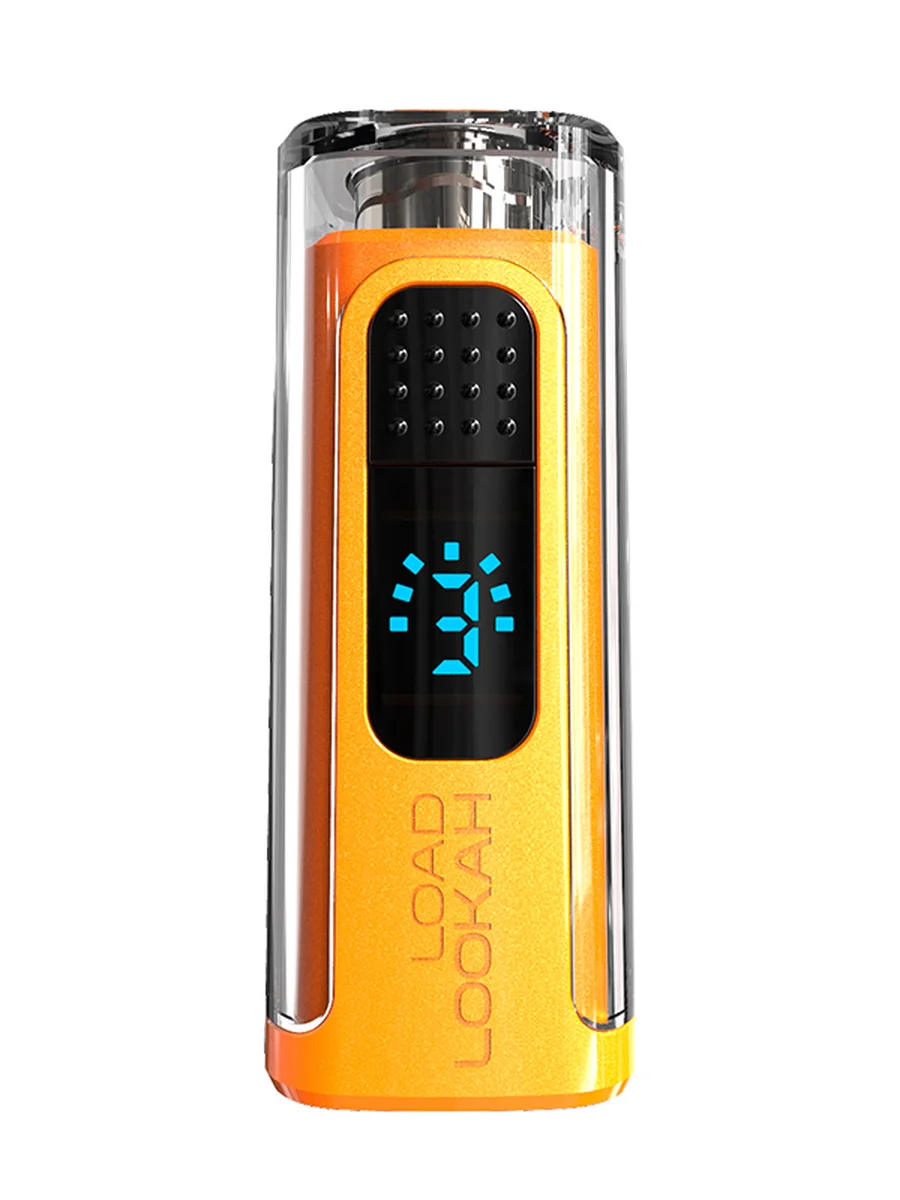

LOOKAH LOAD 510 Vape Pen Battery | Vaporizer

Lookah Load vape pen battery for 510 threaded carts is one of the smallest oil and wax cart pen battery devices on the market.

• At just 57mm long and 22mm wide, this elegant mini vape pen is smaller than a lipstick tube.
• Despite its small size, it has a 500mAh battery capacity, so this mini vape pen is perfect for a day out.
• It can also be charged from a power bank, so it could accompany you on longer trips such as camping, tracking, and any other vacations with excellent battery life.
• It is designed to be used with most 510 threaded cartridges and works with the Lookah 510 thread wax cartridges.
• The small size makes this pen-style battery discreet, and it sits comfortably in the palm of your hand.

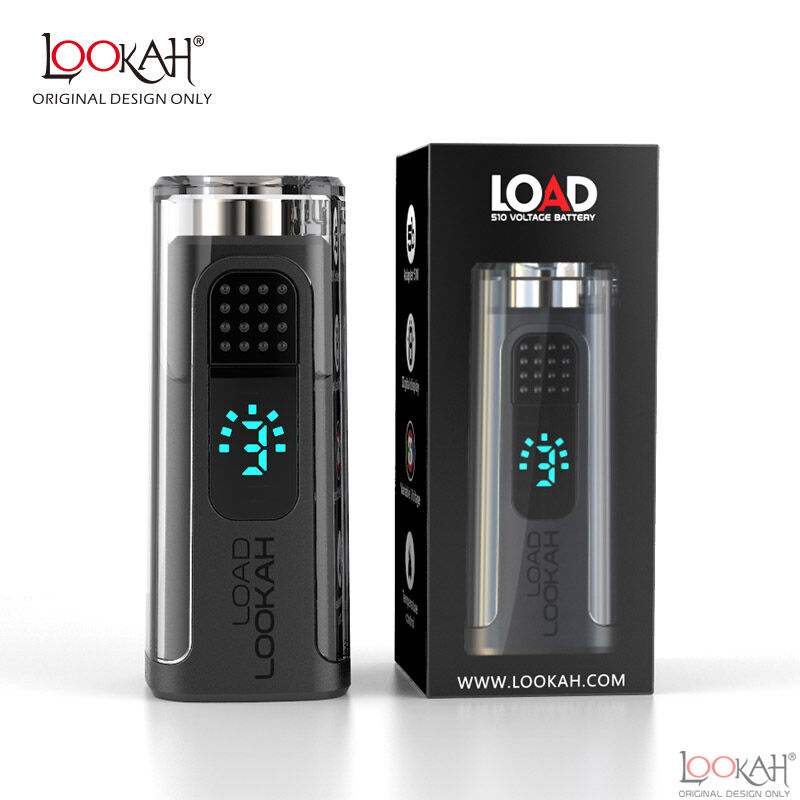

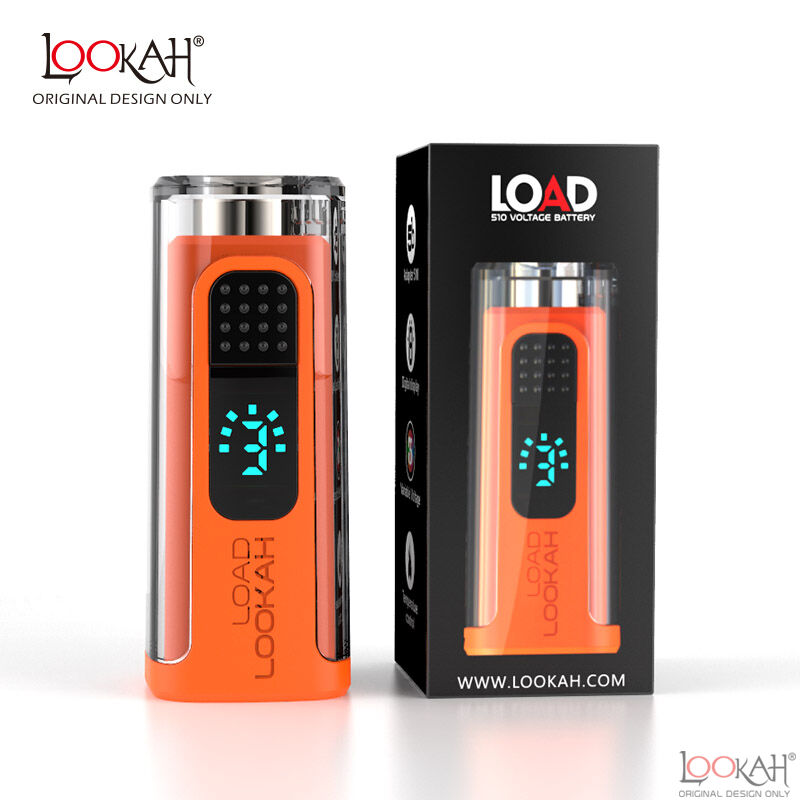

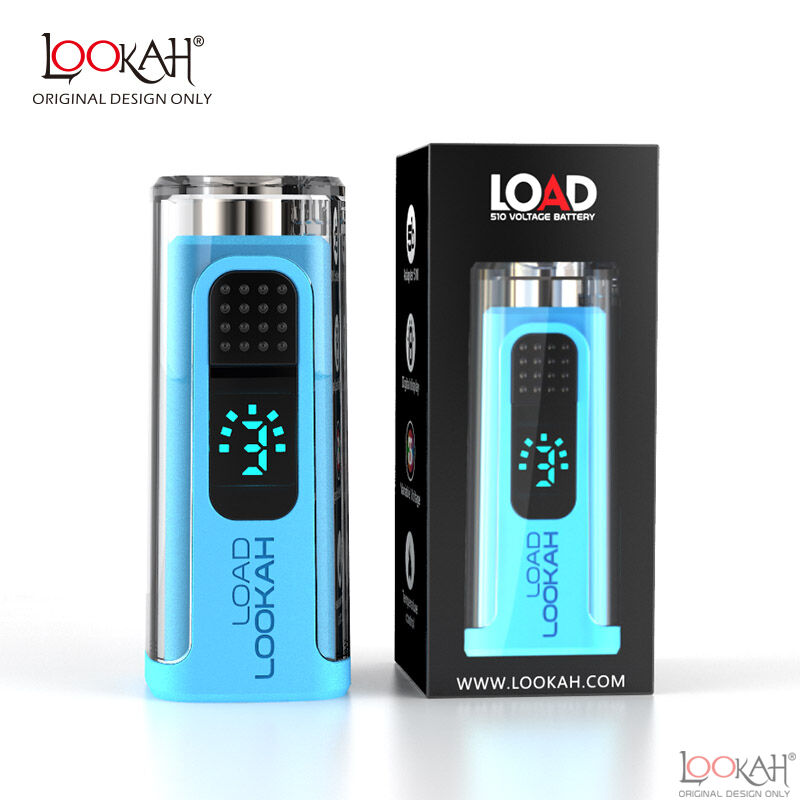

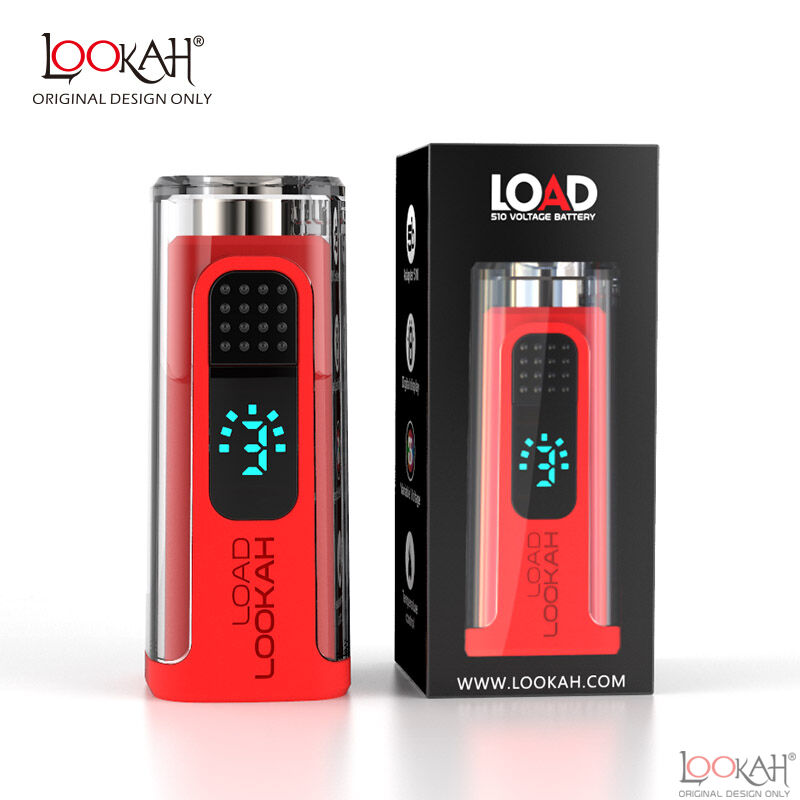

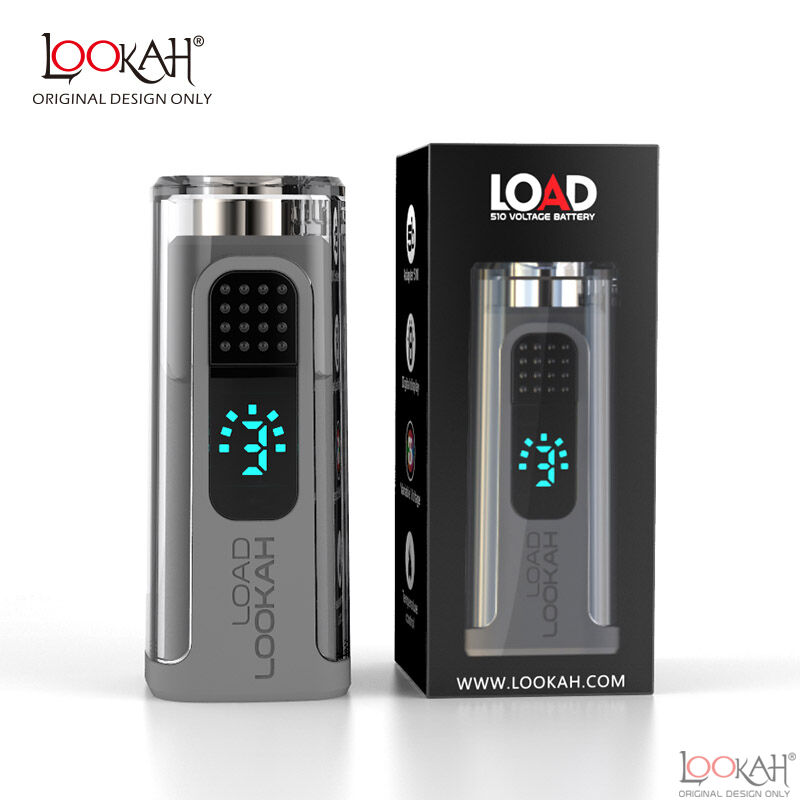

• Choose from one of the vibrant colors like red, orange, or blue, or perhaps a more subtle black or grey that will go with anything.

How to Use the Lookah Load?

The Lookah Load vape battery has a digital display and a single-button function, making it easy to use.
A standard five-rapid power button click will turn the Load on.
The display screen will blink three times with the seven power bar indicators in a horseshoe shape, acknowledging it's now active.
If a 510 cartridge is connected, the device will enter a 10-second preheat mode where the screen flashes and displays a countdown from 9 to 0.

Changing the variable voltage.

Double-tap the power button to switch between the three voltage settings; each voltage is indicated by a number that will show on the display screen. Mode 1, 3.2V, Mode 2, 3.6V and Mode 3, 4.0V.

Vaping with the Load

You need to press and hold the power button while vaping.

When the desired temperature is set, press and hold the power button for up to 10 seconds to vape. After 10S, the screen will flash five times, and the device will switch back to standby.

The seven lights around the edge of the display indicate the remaining charge left in the Load cart pen.

The device can be turned off after use by pressing the power button five times. It will also turn itself off after 60 minutes without being used.

Charging the Lookah Load

A USB Type-C charging port is on the base of this 510-cartridge vape pen.

Connect any type C USB charger cable to this and attach the other end of the cable to a USB charging port.

When charging, the battery indicator lights around the display will flash and light up counterclockwise as the device charges.

FAQ for the Lookah Load

If the display shows "L" when you turn it on, it indicates the battery needs charging.

If the display shows "8" when connected to a charging cable and port, it indicates the battery is fully charged.

If the display shows a "0" or "9", it indicates a short circuit or open circuit.
Please check the thread on the device, and the cartridge is clean and making a good connection.
The LOAD will auto-turn off after 60 minutes of not being used.

Lookah Load Specifications

Built-in Battery: 500mAh
Charging Current: 300mA
Input Voltage: 5V
Resistance 0.5 to 5 Ohm
Three Variable Voltages

Package Content

1 x LOAD Vape Pen Battery.
